Example 18: Report Options

Source: vignettes/reporter-report_options.Rmd

In example 17, we talked about inserting RTF code with report_options(). In this section, we’re going to introduce other parameters in report_options() to change the default settings of the reporter package.

Report Options

Turn Off Auto Pagination

When users set define(page_break = TRUE) to control the pagination, generally the reporter package follows the page settings, but it will still trigger an automatic page break when the reporter package detects an overflow.

Users can turn off the automatic page breaks with report_options(auto_page = FALSE) or create_table(auto_page = FALSE).

  • create_table(auto_page = FALSE) turns off the auto-pagination in one particular table.
  • report_options(auto_page = FALSE) turns off all auto-pagination for tables without auto_page setting in create_table().
fp <- file.path(tempdir(), "example18a.rtf")

dat <- iris[1:100, ]
dat$Species <- as.character(dat$Species)
dat$Species[1:25] <- rep("setosa1", 25)
dat$Species[26:50] <- rep("setosa2", 25)

tbl <- create_table(dat, auto_page = FALSE) %>%
  footnotes("First Table with auto_page=FALSE in create_table",
            "My footnote 2", valign = "bottom") %>%
  define(Species, page_break = TRUE)

tbl2 <- create_table(dat) %>%
  footnotes("Second Table with auto_page=FALSE in report_options",
            "My footnote 2", valign = "bottom") %>%
  define(Species, page_break = TRUE)

tbl3 <- create_table(dat, auto_page = TRUE) %>%
  footnotes("Third Table with auto_page=TRUE in create_table",
            "My footnote 2", valign = "bottom") %>%
  define(Species, page_break = TRUE)

rpt <- create_report(fp, output_type = "RTF", font = "Arial",
                     font_size = 10, orientation = "landscape") %>%
  report_options(auto_page = FALSE) %>%
  set_margins(top = 1, bottom = 1) %>%
  page_header("Left", c("Right1", "Right2", "Page [pg] of [tpg]"), blank_row = "below") %>%
  titles("Table 1.0", "My Nice Table") %>%
  add_content(tbl) %>%
  add_content(tbl2) %>%
  add_content(tbl3) %>%
  page_footer("Left1", "Center1", "Right1")

res <- write_report(rpt)

We create three tables with different settings:

  • tbl1 turns off auto-pagination with create_table(auto_page = FALSE).
  • tbl2 has no setting in create_table(), so it follows report_options(auto_page = FALSE), which also turns off auto-pagination.
  • tbl3 keeps auto-pagination with create_table(auto_page = TRUE) regardless of report_options(auto_page = FALSE).

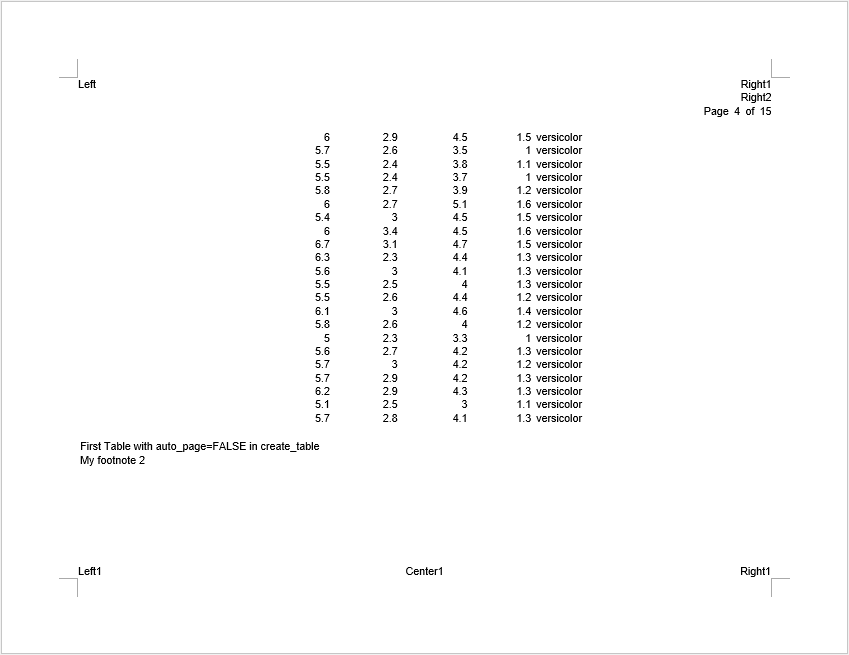

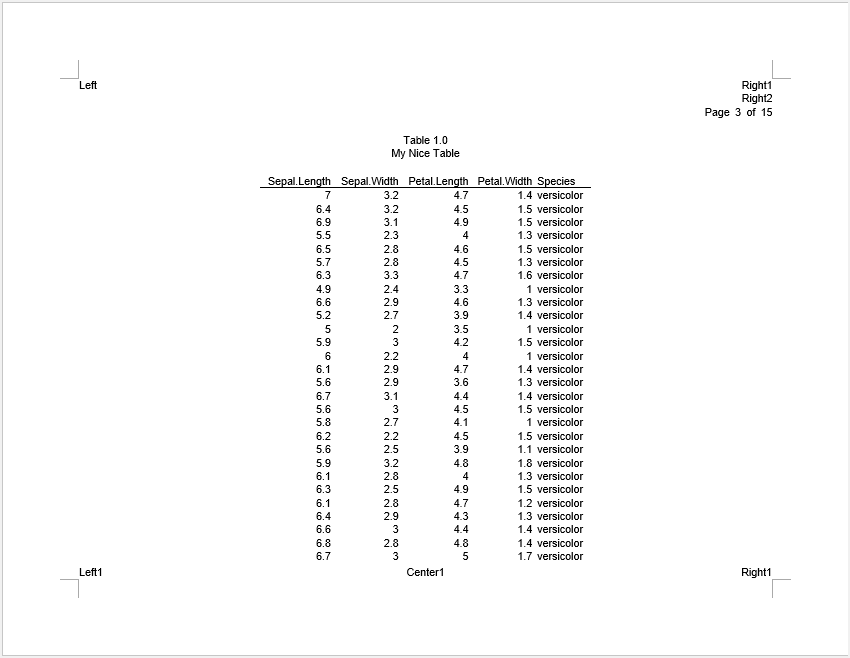

Result Without Auto-Pagination

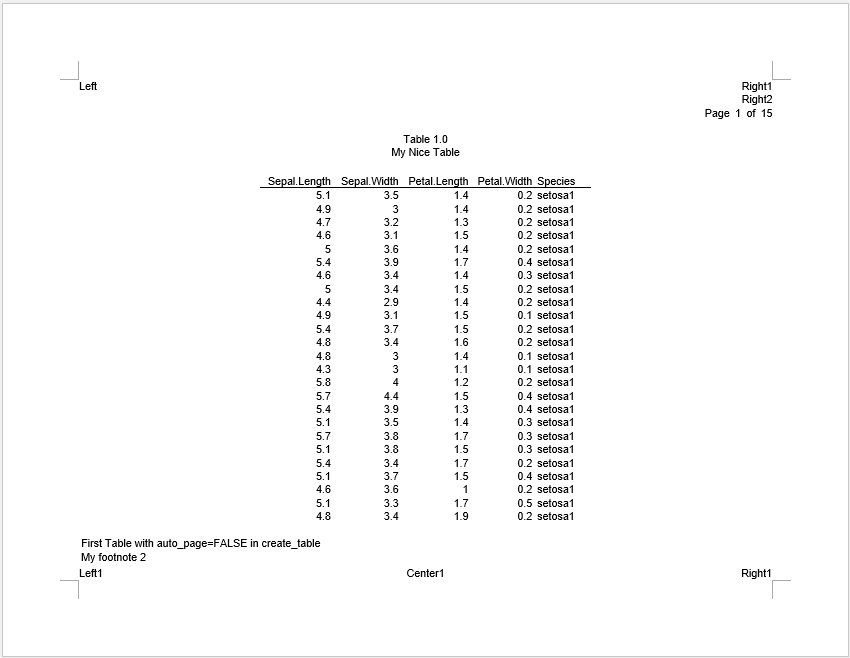

tbl1 and tbl2 have same results as shown below:

Example image A

Example image A

Example image A

Example image A

“setosa1” and “setosa2” fill the pages exactly. “versicolor” has too many records so there is overflow when auto-pagination is turned off.

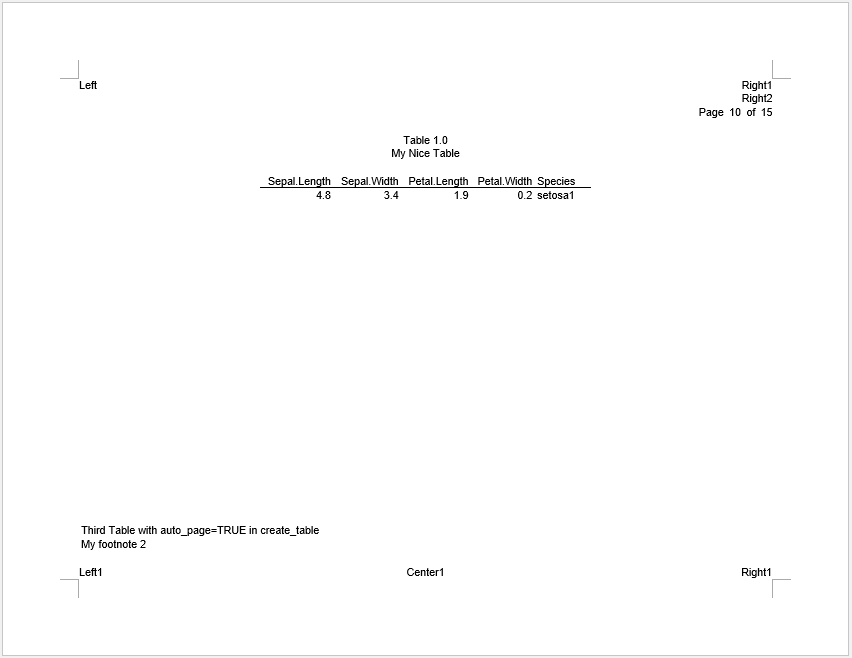

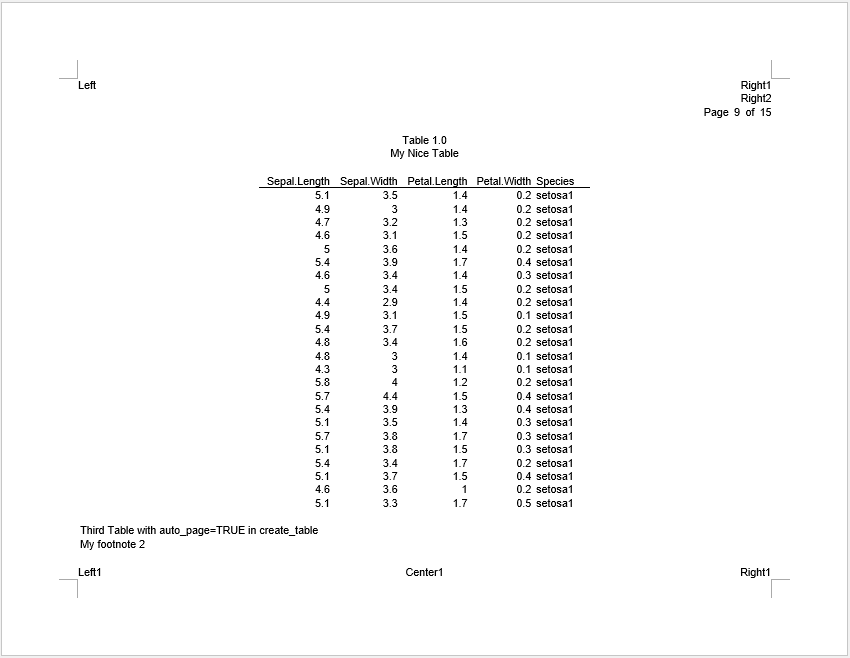

Result With Auto-Pagination

tbl3 keeps auto-pagination. Let’s see the differences:

Example image A

Example image A

Example image A

Example image A

With auto-pagination, the reporter package would keep a little bit buffer to prevent from unexpected overflow, so “setosa1” and “setosa2” across the pages instead of fitting the pages exactly.

Example image A

Example image A

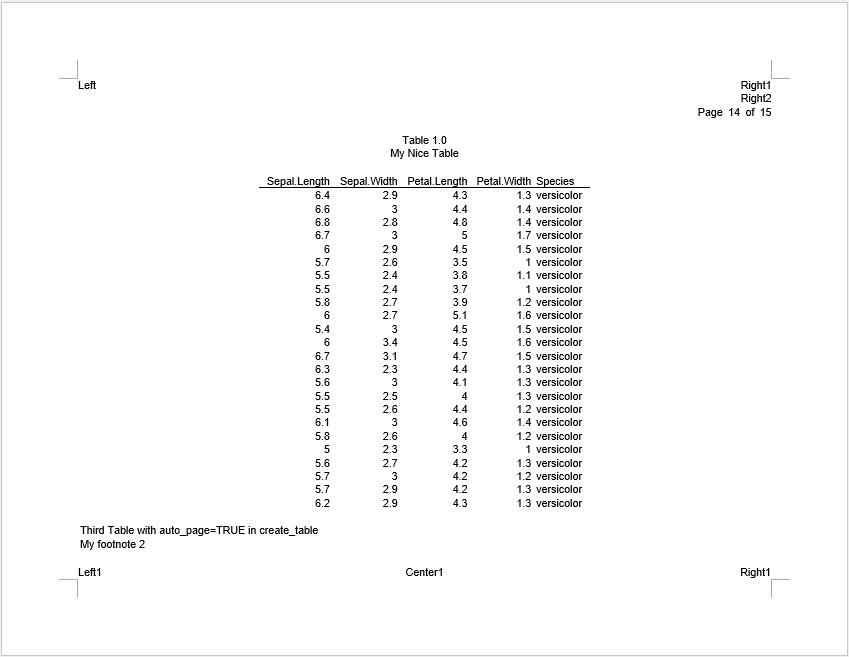

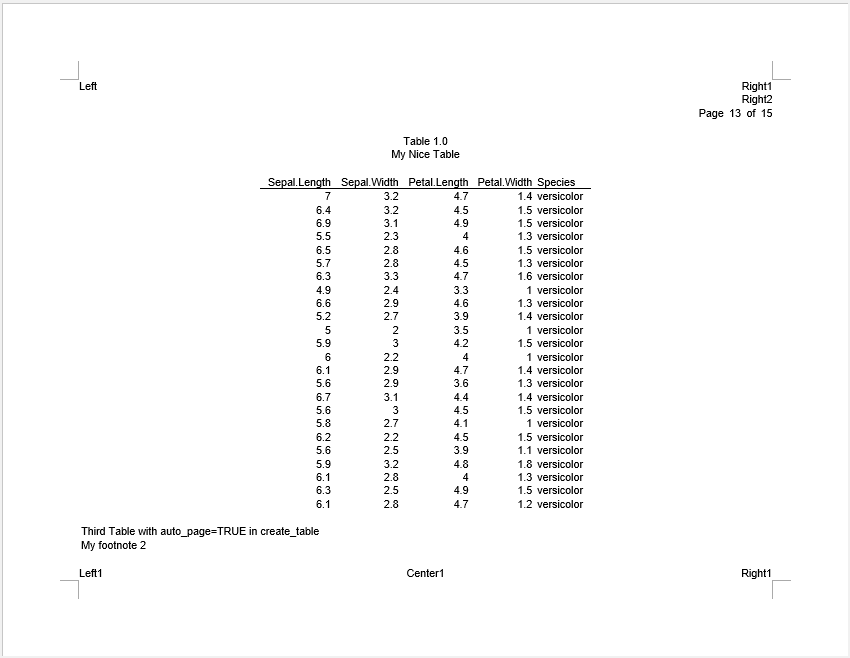

As for “versicolor”, the reporter package breaks pages automatically.

That is to say, when users want to utilize all space per page, they need to carefully calculate the right paging and turn off auto-pagination with create_table(auto_page = TRUE) or report_options(auto_page = FALSE). When turning it off, users should be responsible for the overflow.

top

Turn Off Page Wrapping

In default, when there are too many columns to fit in one page, the reporter would wrap columns across pages. Users can turn it off with report_options(page_wrap = FALSE) or create_table(page_wrap = FALSE).

fp <- file.path(tempdir(), "example18b.rtf")

# Read in prepared data
df <- read.table(header = TRUE, text = '
  USUBJID STUDYID  DOMAIN  SUBJID  RFSTDTC       RFENDTC       RFXSTDTC      RFXENDTC      RFICDTC
  "001"   "ABC"    "DM"    "01"    "2021-12-01"  "2021-12-20"  "2021-12-02"  "2021-12-20"  "2021-12-01"
  "002"   "ABC"    "DM"    "02"    "2021-12-02"  "2021-12-21"  "2021-12-03"  "2021-12-21"  "2021-12-02"
  "003"   "ABC"    "DM"    "03"    "2021-12-03"  "2021-12-22"  "2021-12-04"  "2021-12-22"  "2021-12-03"
  "004"   "ABC"    "DM"    "04"    "2021-12-04"  "2021-12-23"  "2021-12-05"  "2021-12-23"  "2021-12-04"
  "005"   "ABC"    "DM"    "05"    "2021-12-05"  "2021-12-24"  "2021-12-06"  "2021-12-24"  "2021-12-05"
  "006"   "ABC"    "DM"    "06"    "2021-12-06"  "2021-12-25"  "2021-12-07"  "2021-12-25"  "2021-12-06"
  "007"   "ABC"    "DM"    "07"    "2021-12-07"  "2021-12-26"  "2021-12-08"  "2021-12-26"  "2021-12-07"
  "008"   "ABC"    "DM"    "08"    "2021-12-08"  "2021-12-27"  "2021-12-09"  "2021-12-27"  "2021-12-08"')

# Define table
tbl <- create_table(df, page_wrap = FALSE) |>
  titles("page_wrap = FALSE in create_table()")
tbl2 <- create_table(df) |>
  titles("page_wrap = FALSE in report_options()")
tbl3 <- create_table(df, page_wrap = TRUE)

# Define Report
rpt <- create_report(fp, font = "Arial", font_size = 10, units = "cm",
                     orientation = "portrait") %>%
  report_options(page_wrap = FALSE) %>%
  titles("Listing 1.0",
         "Demographics Dataset") %>%
  add_content(tbl, align = "left") %>%
  add_content(tbl2, align = "left") %>%
  add_content(tbl3, align = "left") %>%
  page_header("Sponsor", "Drug") %>%
  page_footer(left = "Time", right = "Page [pg] of [tpg]") %>%
  footnotes("My footnote")

res <- write_report(rpt, output_type = "rtf")

We create three tables with different settings:

  • tbl1 turns off page wrapping with create_table(page_wrap = FALSE).
  • tbl2 has no setting in create_table(), so it follows report_options(page_wrap = FALSE), which also turns off page wrapping.
  • tbl3 keeps page wrapping with create_table(page_wrap = TRUE) regardless of report_options(page_wrap = FALSE).

Result Without Page Wrapping

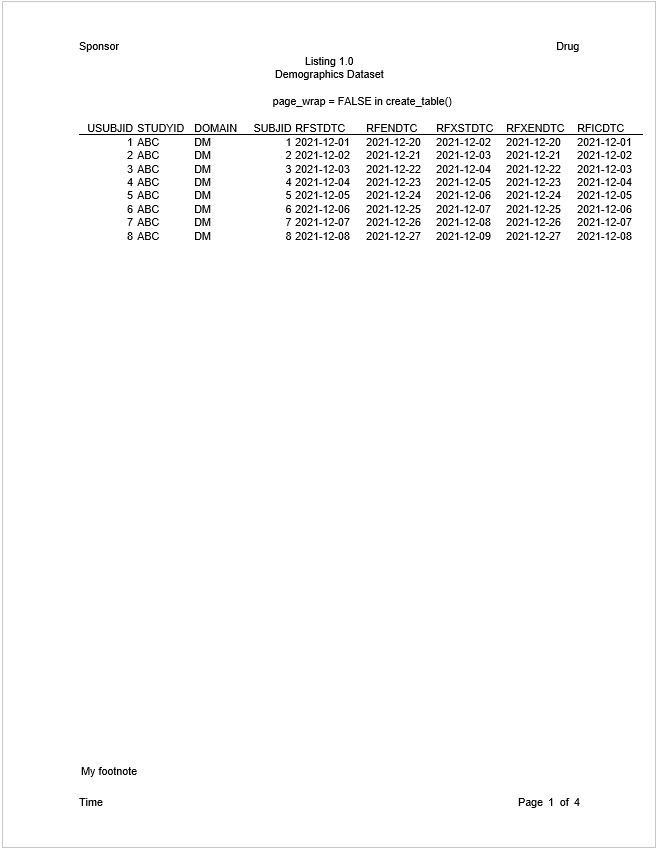

The columns are out of the margin without page wrapping.

Example image A

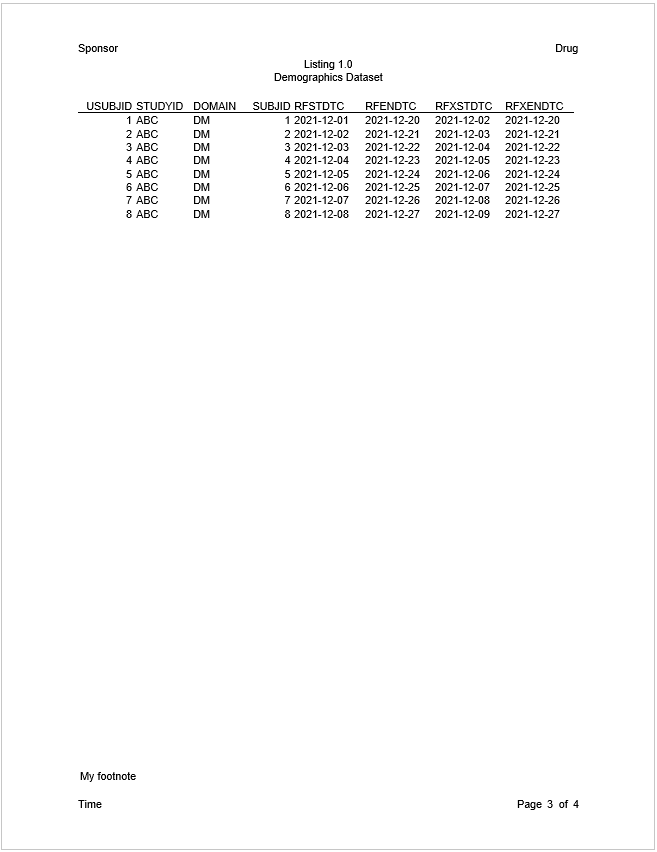

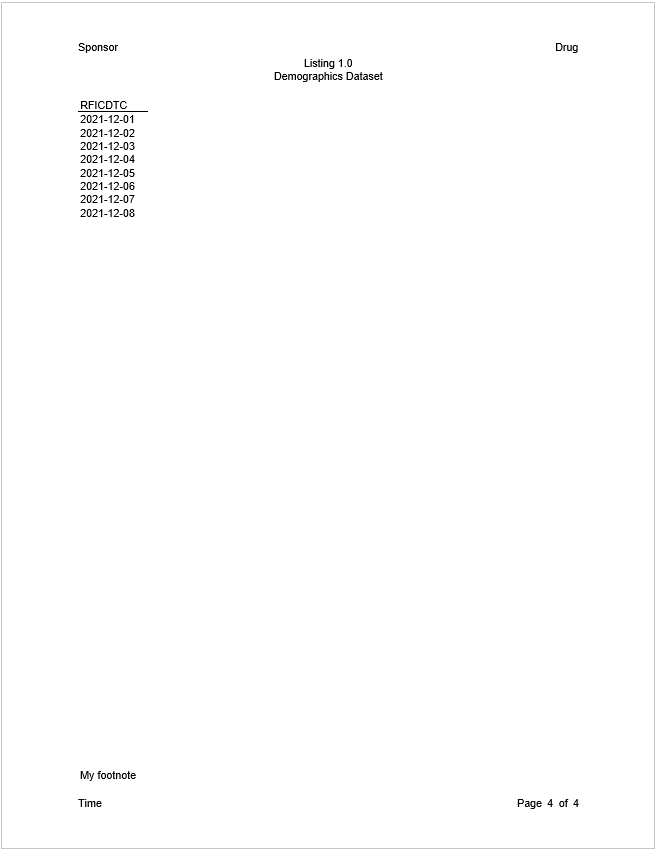

Result With Page Wrapping

Page is wrapped so some columns are displayed in the next page.

Example image A

Example image A

top

Turn Off Line Break

In default, the reporter package would wrap the lines automatically. User can turn it off with report_options(line_break = FALSE). Then it allows the browser to wrap the lines automatically. It supports RTF, DOCX, and HTML file formats.

fp <- file.path(tempdir(), "example18c.rtf")

df <- read.table(header = TRUE, text = '
  var     label        A             B
  "ampg"   "N"          "19"          "13"
  "ampg"   "Mean"       "18.8 (6.5)"  "22.0 (4.9)"
  "ampg"   "Median"     "16.4"        "21.4"
  "ampg"   "Q1 - Q3"    "15.1 - 21.2" "19.2 - 22.8"
  "ampg"   "Range"      "10.4 - 33.9" "14.7 - 32.4"
  "cyl"    "8 Cylinder" "10 ( 52.6%)" "4 ( 30.8%)"
  "cyl"    "6 Cylinder and more perhaps more" "4 ( 21.1%)"  "3 ( 23.1%)"
  "cyl"    "4 Cylinder" "5 ( 26.3%)"  "6 ( 46.2%)"')

df$sub_title <- "This is a long page by value which would not be inserted any line break characters."

# Create table
tbl <- create_table(df, first_row_blank = TRUE, borders = c("all")) %>%
  stub(c("var", "label"), width = .8) %>%
  page_by(sub_title, label = "This is a long label which would make multiple lines:",
          bold = "label") %>%
  define(sub_title, visible = FALSE) %>%
  define(var, blank_after = TRUE, label_row = TRUE,
         format = c(ampg = "Here is a label\nwith manual line break.",
                    cyl = "Cylinders")) %>%
  define(label, indent = .25) %>%
  define(A, label = "Group A", align = "center") %>%
  define(B, label = "Group B", align = "center")


# Create report and add content
rpt <- create_report(fp, orientation = "portrait", output_type = "RTF",
                     font = "Arial") %>%
  report_options(line_break = FALSE) %>%
  page_header(left = "This is a long left header which would not be inserted any line break characters.",
              right = "This is a long right header which would not be inserted any line break characters.") %>%
  titles("Table 1.0",
         paste0("This is a title which is turned off the automatically line breaks",
                " so it should not contain any line break characters and it should",
                " prevent from overflow because the wrapping lines are turned off.")) %>%
  add_content(tbl) %>%
  footnotes(paste0("This is a long footnote which would not be inserted any line break characters even though it",
                   " has multiple lines. There should be no overflow because lines have been counted.")) %>%
  page_footer(left = "This is a long left footer which would not be inserted any line break characters.",
              center = "This is a long center footer which would not be inserted any line break characters.",
              right = "This is a long right footer which would not be inserted any line break characters.")

res <- write_report(rpt)

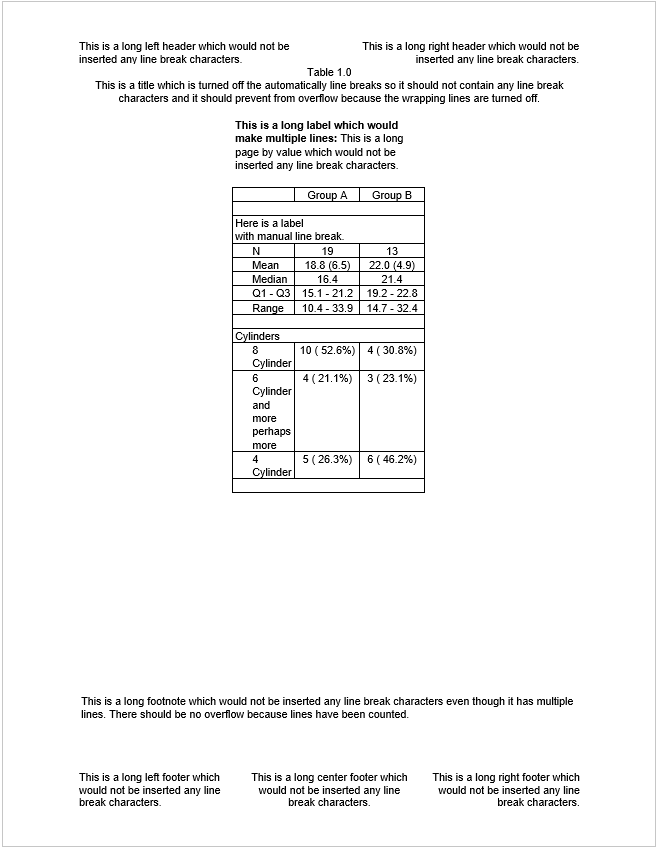

Result Without Line Breaks

We can see that there is no overflow even line breaking is turned off. This is because the reporter still count the lines despite not inserting line-break characters.

Example image A

We could check that there is only one line break code which we’ve assigned in data.

# Check if there is only one manual line break "\line"
rtf <- readLines(fp, warn = FALSE)
manual_break_count <- 0
for (r in rtf) {
  matches <- gregexpr("\\line", r, fixed = TRUE)
  count_result <- ifelse(matches[[1]][1] == -1, 0, length(matches[[1]]))
  manual_break_count <- manual_break_count + count_result
}
manual_break_count
# [1] 0

top

Next: More Examples
